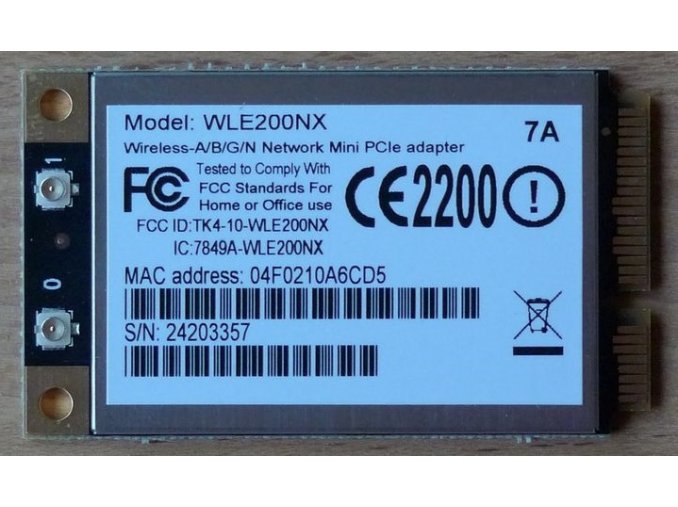

WiFi Compex WLE200NX / set APU
Popis

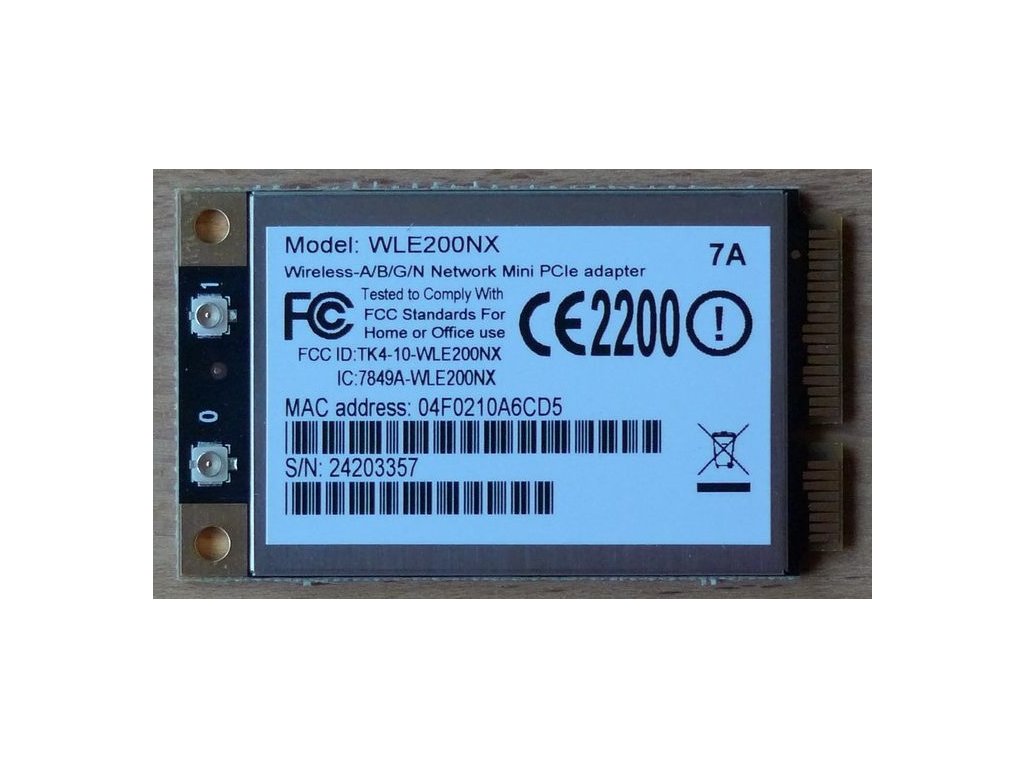

WiFi miniPCI express karta Compex WLE200NX jako set karta, 2 pigtaily a 2 antény.
• Atheros XB92 reference design, MIMO 2*2
• Atheros XSPAN family chipset,P/N AR9280
• IEEE 802.11n compliant and backward compatible with 802.11a/b/g
• Supports up to 300Mbps physical data rates
• Maximum output power 18dBm@802.11a / 20dBm MIMO aggregate
• Transmission Power Control (TPC)
• Dynamic Frequency Selection (DFS)
• Global Roaming Support (IEEE802.11d)
• 2 x U.FL Antenna Connector
• Complaint with PCI-Express Mini Card 1.1 Standard
• Supports 802.11x authentication, 64/128/152Bit WEP, IEEE802.11i encryption
| Compex WLE200NX (?) | 1 |

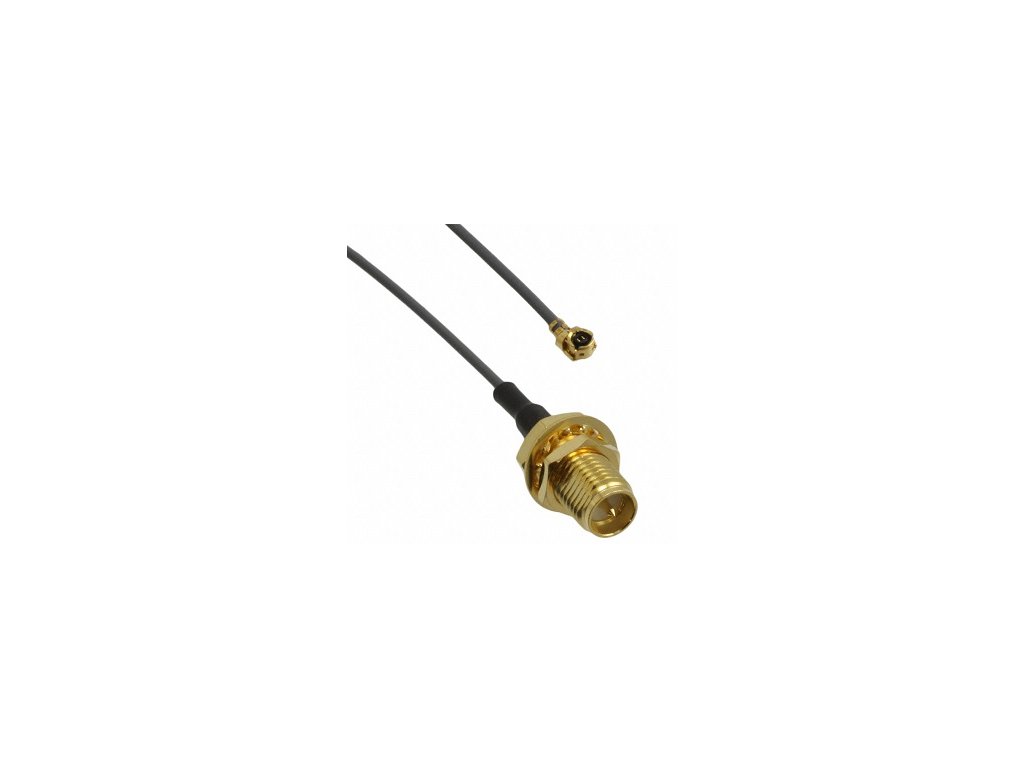

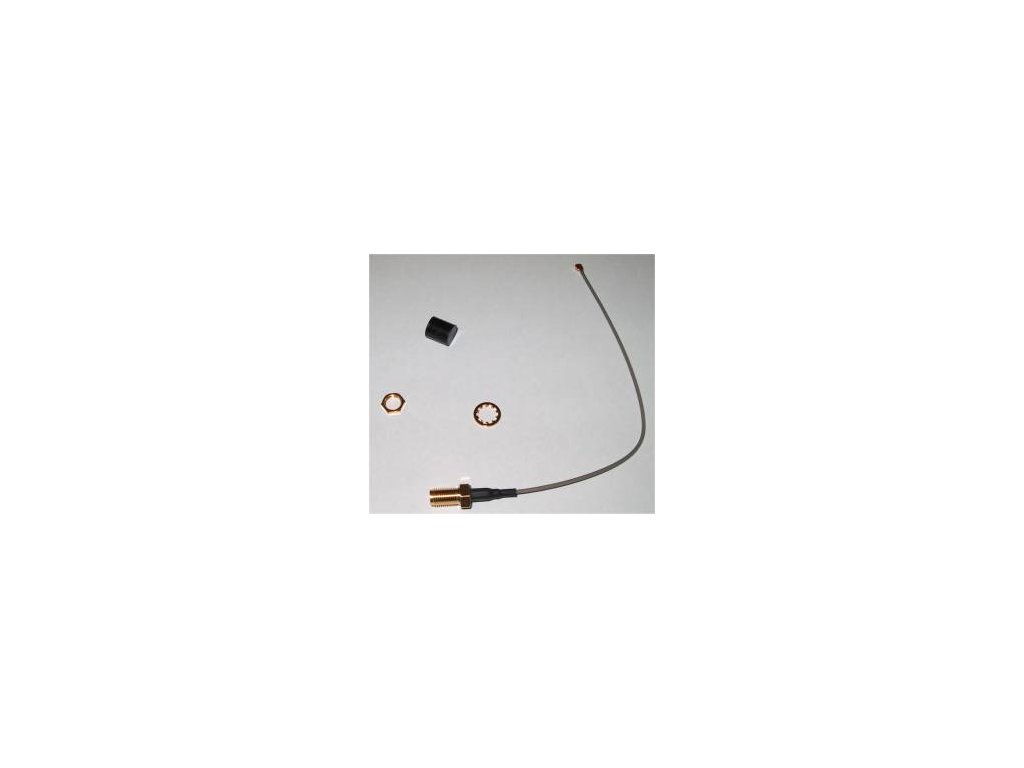

| Pigtail U-FL RSMA female (?) | 2 |
| Anténa 5dBi 2,4 GHz (?) | 2 |
