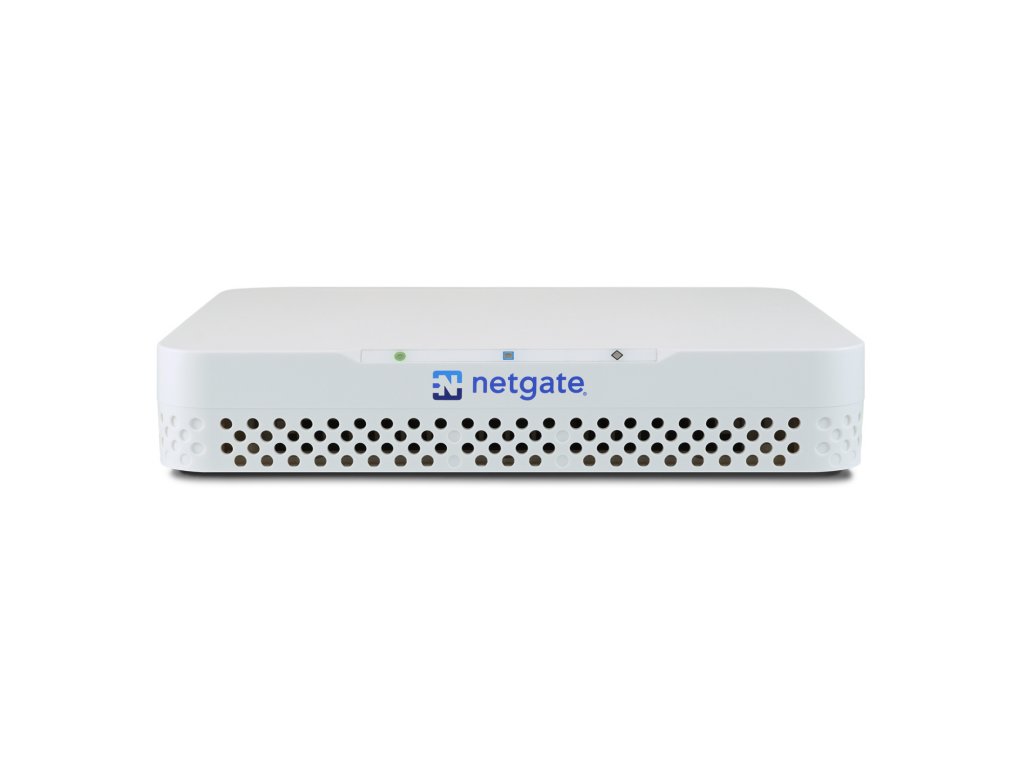

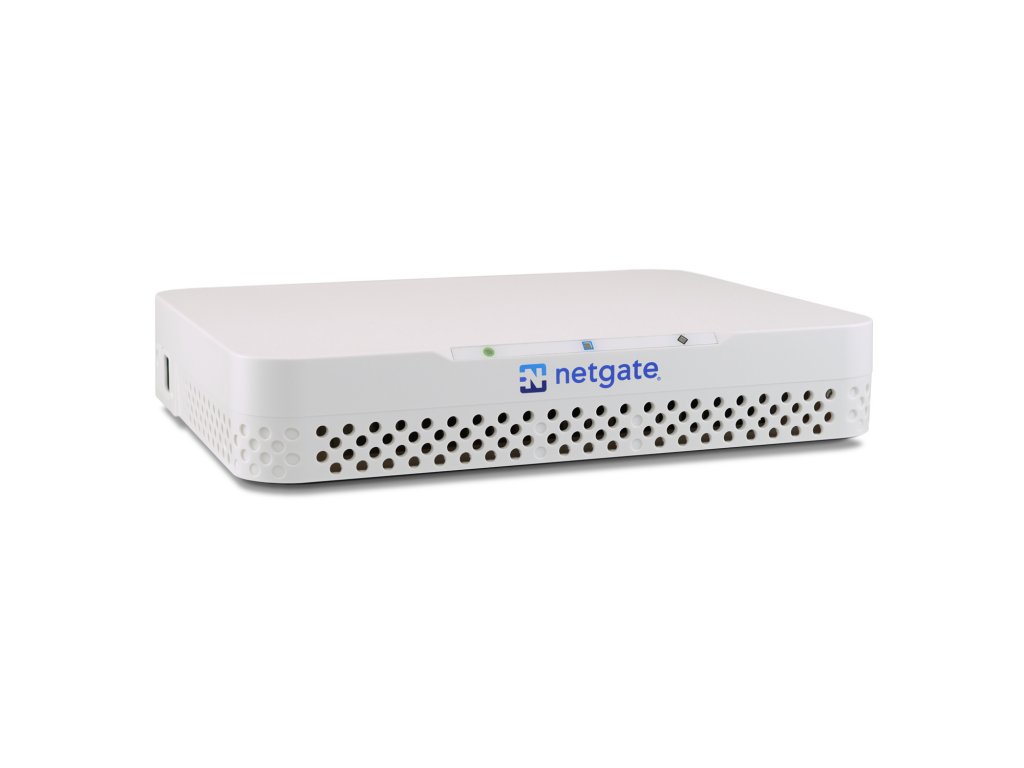

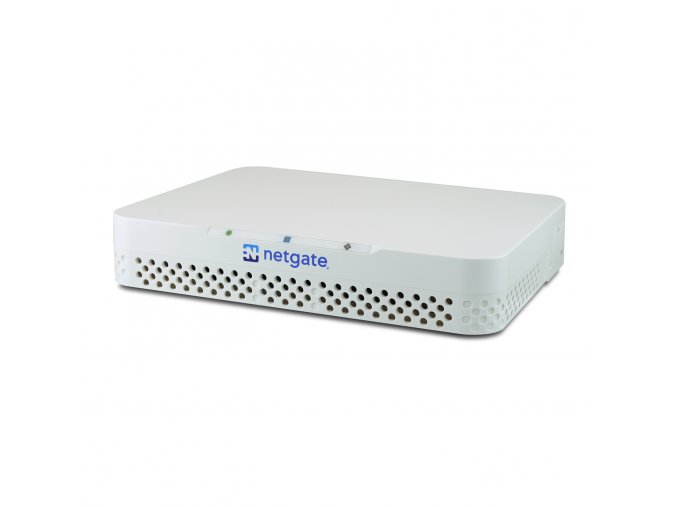

Netgate 6100 MAX TNSR Secure Router

TNSR Secure Router s Intel "Denverton" Atom C3558 2.2 GHz with QuickAssist & AES-NI

• CPU: Intel® Atom® C3558 with QAT, 4-core @ 2.2 GHz (Denverton family)
• CPU Cores: Quad Core
• Networking: (2) 10 Gbps SFP+ cage (WAN) (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) "Combo Port" (WAN) (4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN)
• Storage: 16GB eMMC upgradable to 128GB NVMe M.2 SSD
• Memory: 8 GB DDR4 w/o ECC, single channel
• Max Active Connections: 4.0
• Console Port: 1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)
• USB Ports: 2 x USB 3.0 jacks (USB-A female) (located on Right Side Rear)
• LED: 3 x RGB LED(s) software / bootloader controllable via Microchip MCU
• Form Factor: 254 x 200 x 47.63 mm
• Cooling: Passiv
• Power Input: External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W)
• Environmental: 0°C to 40°C - ambient
