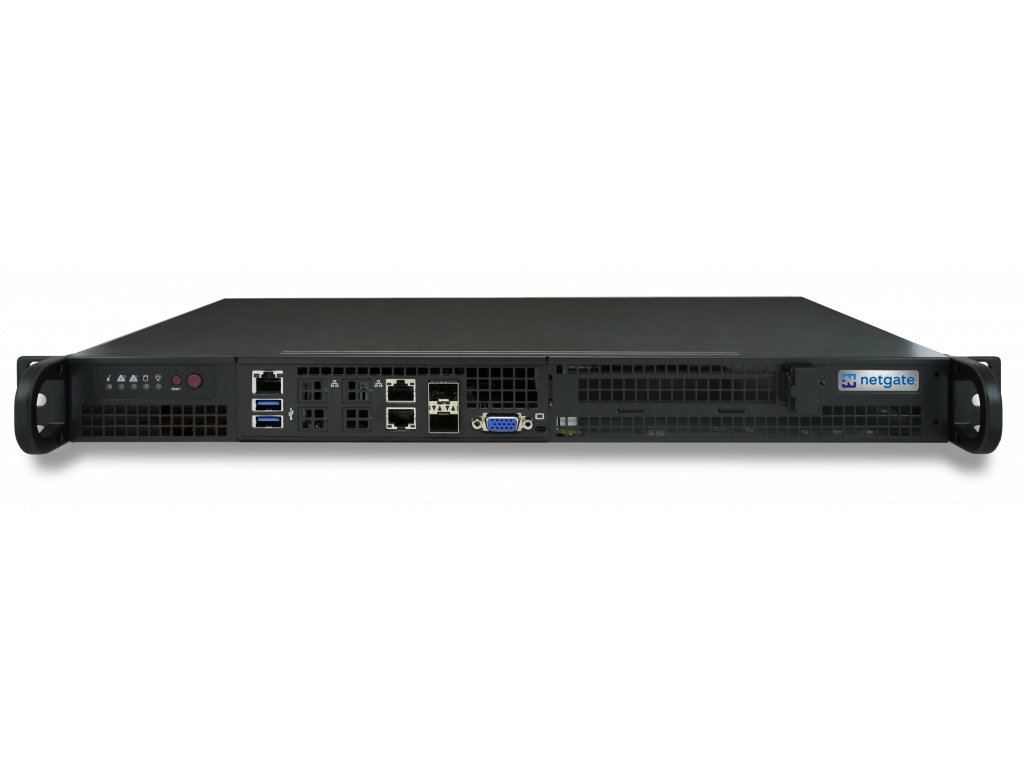

Netgate 1537 TNSR Secure Router

TNSR Secure Router s procesorem Intel “Xeon-DE” D-1537, 1.7 GHz FCBGA 1667 podpora SoC AES/NI

• CPU Intel “Xeon-DE” D-1537, 1.7 GHz FCBGA 1667 supported SoC AES/NI
• CPU Cores: 8, 16 Threads, 35W
• Networking: 2x 10G SFP+ LAN via SoC - 2x 1GbE RJ45 LAN via Intel® i350-AM2 - 1x IPMI RJ45 Dedicated Port
• Storage: 256GB Micron M.2 SSD
• Memory: 8 GB DDR4 UDIMM
• USB Ports: 2x USB 3.0 ports (rear), 2x USB 2.0 ports (via header)
• LED: Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Information LED (temp., status)
• Cooling: 200W Low-noise PS with PFC: Active CPU fan, 40mm chassis fan
• Power: 240/120VAC -> 12VDC, C13 Cable
• Environmental: 0°C bis 60°C Operating Temp, 8% bis 90% Operating Relative Humidity
• Certifications: CE, FCC, RoHS, UL

Produktový manuál.
