SFP+ 10GBASE-T 80M COPPER RJ-45 TRANSCEIVER

Neohodnoceno



1 z 4   Tweet

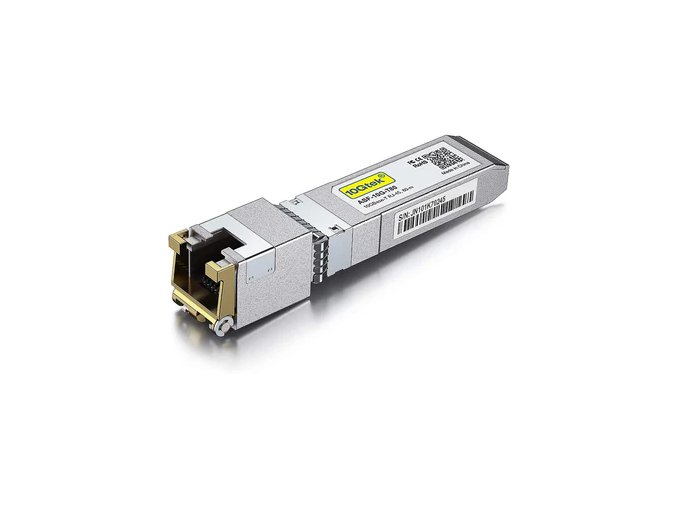

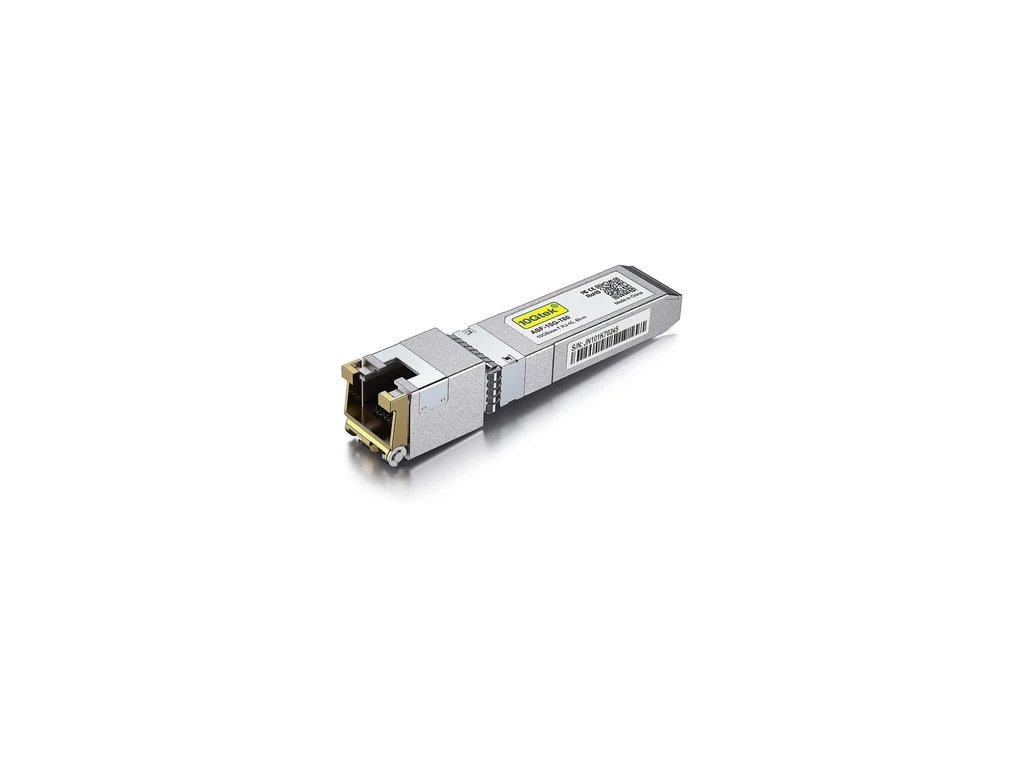

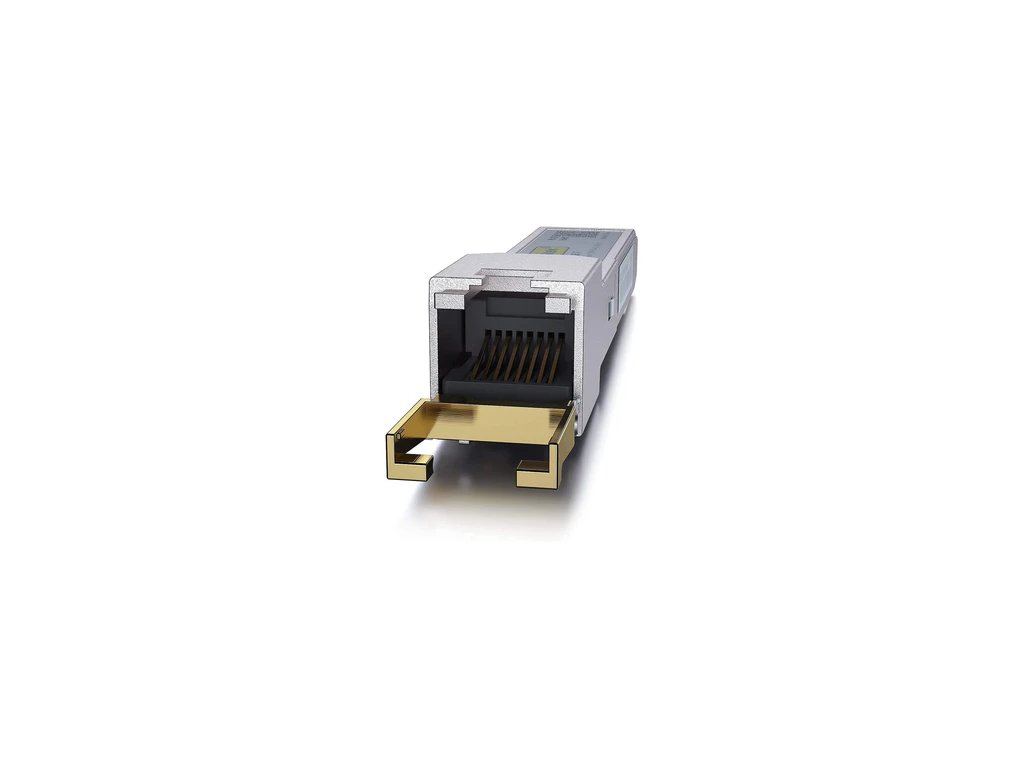

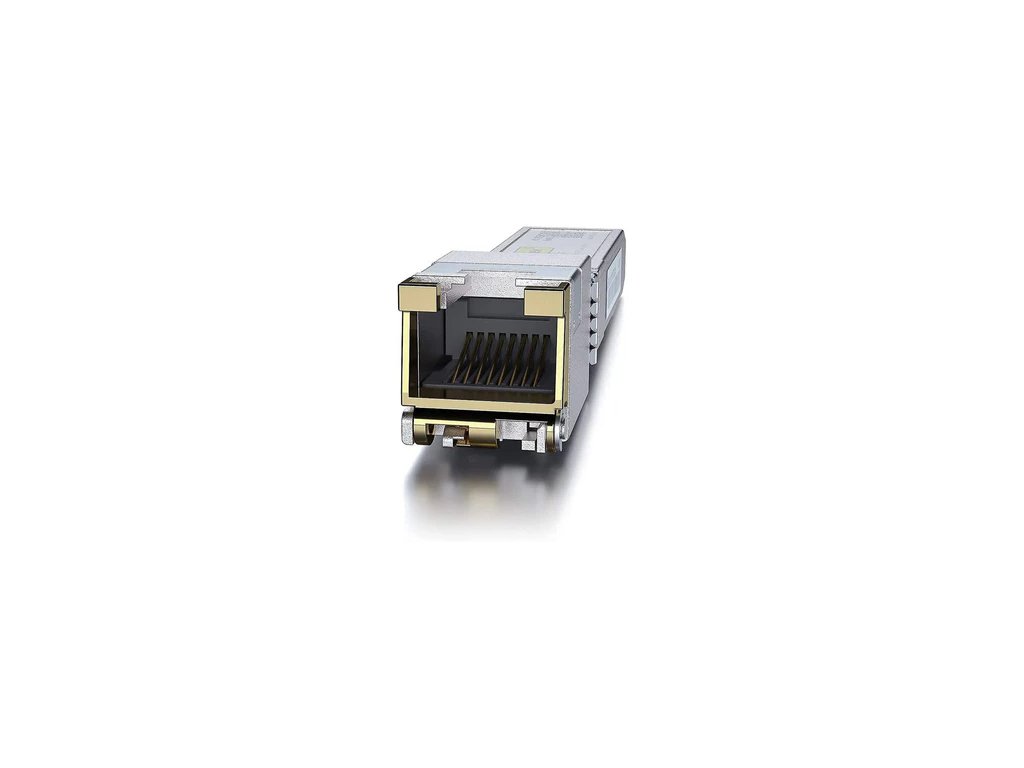

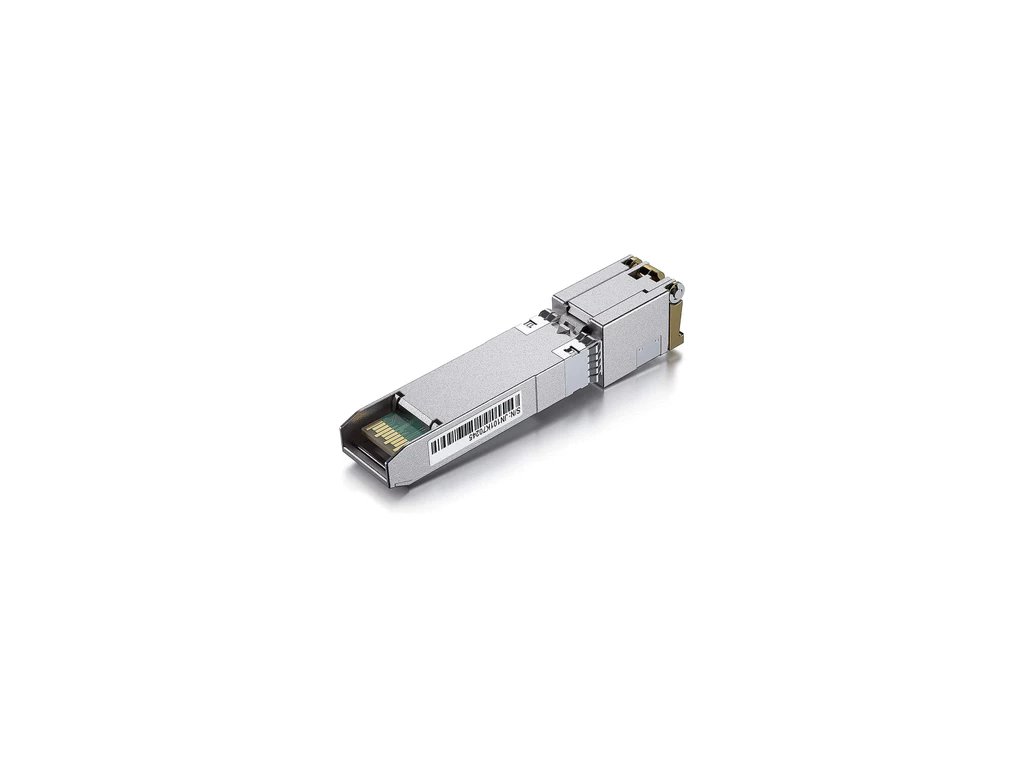

ASF-10G-T80 is a 10GBase-T multi-rate Copper RJ45 SFP+ transceiver. Equipped with a BROADCOM BCM84891 PHY chip, the ASF-10G-T80 offers ultra low power consumption and longer transmission distance (1.6W 10Gbps 30m，2.0W 10Gbps 80m). Dostupnost Skladem u dodavatele Cena 2 889 Kč bez DPH 3 495,69 Kč     Parametry Kód produktu NG-SFP10GB-COPPER-RJ-45 Značka pfSense Webová stránka značky pfsense.org Kategorie pfSense / Netgate Záruka 1 rok Tisk Dotaz

• Popis
• Video
• Diskuse



Popis

Key Features

• SFP+ transceiver module
• Broadcom BCM84891 PHY chip
• 10GBase-T*
• RJ-45 interface
• Operating data rate up to 10.3Gbps
• Transmission distance up to 80m
• Supports DOM
• Operating Case Temperature Standard: 0°C ~ +70°C (32°F ~ 158°F)



Applications

• 10GBASE-T Ethernet
• CAT.6a / CAT.7



Compliance Information

• Compliant with MSA SFP+ specification
• Compliant with IEEE 802.3an/az



SUPPORT AND WARRANTY INFORMATION

• Manufacturer's Hardware Warranty: 3 years.
• All specifications subject to change without notice.





Comparing SFP+ 10 Gigabit Connectors: LC Multi-Mode Fiber, 10GBASE-T, and DAC Cables.
